FEATURE
PATENTED
- Light weight heavy duty fiber composite body for durability and long life
- Continuous pressurization system - The fuller it primes, the slower it drives the piston
- 3-way loading: Bulk/ filler pump/ 16oz (450g) grease cartridge
- Air vent valve for purging unwanted air
- 4-jaw super grip coupler for better grip and longer service life
- Non-slip knurled better grip
- Grease rate: 216 g/min
- Maximum Viscosity : Upto NLGI# 2
- Air Inlet: 1/4"
- Air consumption: 1.19 CFM
- Hose size: 3/8" I.D.
- Weight: Only 1 KG
- Optional 6" rigid pipe or 18" Felxible hose with spring guard
SPECIFICATION
| Weight | 1 kg |
|---|---|
| Capacity Bulk | 18oz/ 500g |
| Capacity Cartridge | 16oz/ 450g |
| Input Pressure | 90 PSI |
| Output Pressure | 3,600 PSI |
| Packing | 10 PCS/ CTN Standard white box |
APPLICATIONS
SERIES PRODUCT

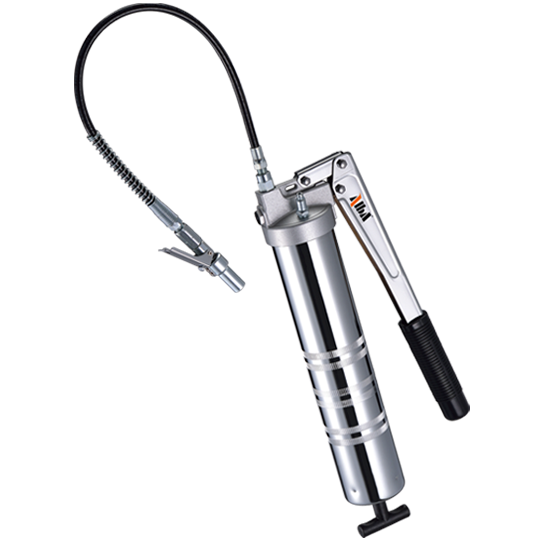

KCG-500
16oz/450g Lever Grease Gun
KCG-AL45
16oz/450g Premium Lever Grease Gun
KCG-AL45-20ES16
16oz/450g Premium Lever Grease Gun w/ EcoSmart® System + Slimline Quick Release Grease Coupler

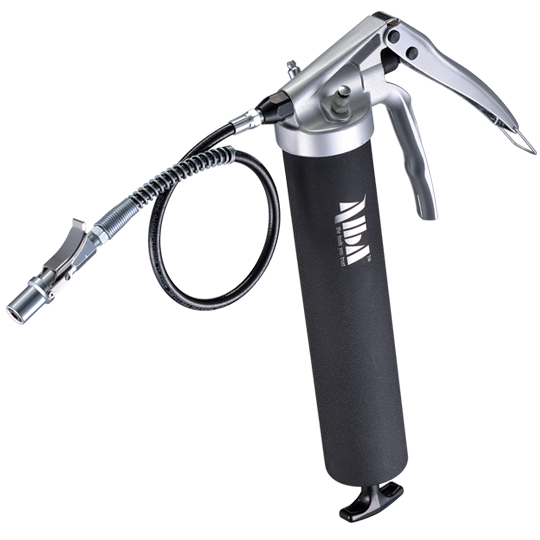

KCG-483N
16oz/450g Professional Pistol Grip Grease Gun - CMPT Samoa Hallbauer PEP 500

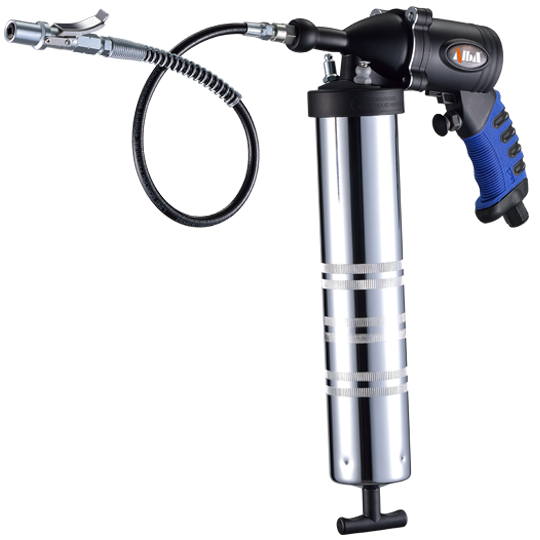

KC-505FC-20ES16
16oz/450g Fiber Composite Cont. Shot Air Grease Gun w/ EcoSmart® System + Slimline Quick Release Grease Coupler
