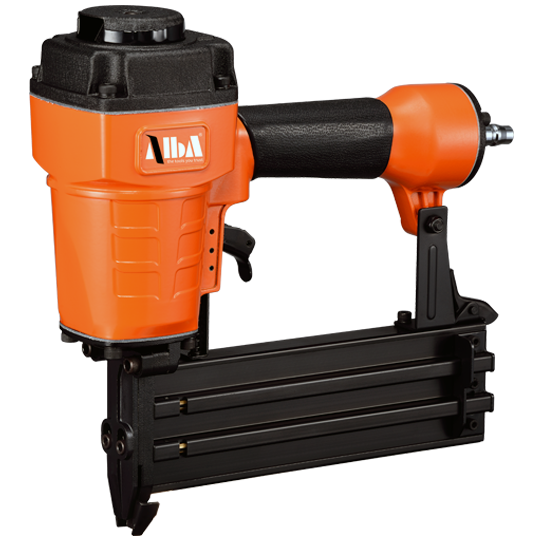

KCT-2564 (ST64)

KCT-2564 (ST64)

Air Concrete T-Nailer

Add to inquiry
FEATURE
  • Pierce 3/16" sheet metal and drive 3/8" deep into average concrete density
  • Drives 5/8" to 2 1/2" T-nails with 0.082" - 0.097" shank
  • Self-adjusting magazine accommodates 10 T-nails sizes
  • Fasten various combinations of wood, metal and concrete
  • Lightweight aluminum body designed for mobility and all day continuous use
  • Precision machined aluminum piston, cylinder and firing valve
  • Fastener indicator shows magazine fastener supply
  • Convenient side loading for quick reloading
  • Removable nose cover provides easy access to the T-nail chamber
  • 360° exhaust cover allows adjustment in any direction
  • Rubber handgrip for a comfortable firm grip
  • Safety mechanism prevents accidental firing
  • Powder-actuated tools may require licensing; pneumatic KCT-2564 (ST64) doesn't
SPECIFICATION
Body Dimension L298 x H273 x W95 mm
L11-3/4" x 10-3/4" x 3-3/4"
Weight 5.7lbs/ 2.6kg
Operating Pressure 70 ~ 100 PSI/ 4.8 ~ 7 Bar
Fastener Type 0.082'' ~ 0.097'' shank T-nails
Fastener Range 5/8" ~ 2-1/2" ( 16 ~ 64 mm )
Fastener Capacity approx. 80 nails
Air Inlet 1/4" ( 6 mm ) NPT male plug
Packing 5 pcs/ctn
